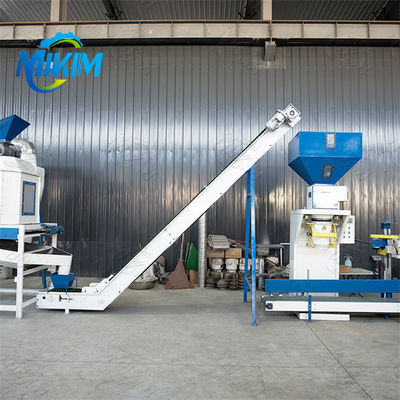

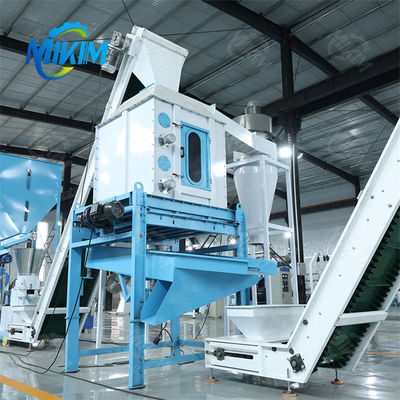

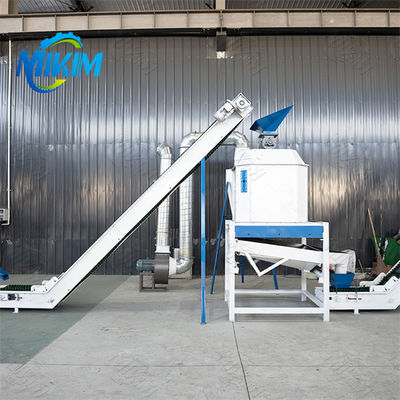

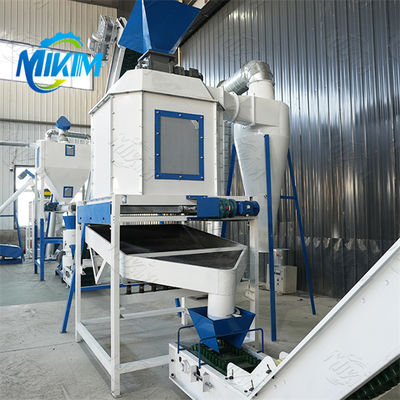

Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming

Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming
Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming

Großes Bild :  Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming

Produktdetails:
Herkunftsort: CHINA
Markenname: MIKIM
Zertifizierung: CE
Modellnummer: Pelletproduktionslinie
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: 10000USD
Verpackung Informationen: Standard -Exportpackung
Lieferzeit: 5-8Work Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 100T/h
Kontakt

Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming

Beschreibung
Anwendbare Branchen: Fertigungsanlage, Farmen, Hausgebrauch Produktion: 1 bis 100 Tonnen
Funktion: Aniaml Feed Puffed Pellet Machine, die Tierfutterpellets produzieren Typ: One Stop -Lösung Tierfutter Pelletmaschine, Tierfutterverarbeitungsmaschinerie
Merkmale: Hoher Effizienz, geringes Rauschen, einfacher Betrieb Rohstoff: Weizenkleie, Mais, breit, Sojabohnen, Strohhalm
Hervorheben:

fully automatic feed pellet machine

,

poultry feed pellet production line

,

turnkey feed pellet machine project

Integrated, Segmented Fully Automatic Feed Pellet Production Line - Turnkey Project for Poultry Farming
When designing the equipment configuration for a feed production line, a reasonable combination should be made based on production scale, product type, and quality requirements.
Key Design Considerations
  • Quality & Compatibility: Multifunctional and modular equipment should be selected to facilitate future expansion and upgrades. For example, a pelletizer with adjustable parameters can produce pellets of varying specifications while adjusting production capacity based on market demand.
  • Automation Level: Automated equipment, such as automatic batching systems and intelligent control systems, can significantly reduce human error and improve production efficiency. Sensors and PLC (programmable logic controller) control systems can be used to monitor and adjust the entire process.
  • Energy Efficiency: Choosing equipment with low energy consumption and easy maintenance will help reduce operating costs. Equipment should be made of durable materials and designed to facilitate daily maintenance and cleaning.
  • Production Line Layout: The equipment layout should align with the process flow, minimize material handling distances, and ensure a continuous and efficient production process.
Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming 0
Technical Specifications
Capacity 1-100t/h
Range of Application Large commercial feed factory, could make chicken, sheep, cow, shrimp feed
Workers Requirements 4-5 people
Shipment Requirements 6×40ft container
Product Advantages Fully automatic intelligent batching, computer control system with stable output, efficient and continuous operation, labor saving, direct packaging, particle size can be selected from 1-12mm
Size for Whole Line According to land size and layout
Production Process
Raw Material Pretreatment
Sawdust, as a biomass raw material, requires screening to remove impurities and ensure uniform particle size. Screened sawdust typically requires drying to achieve appropriate moisture content (typically around 10%-20%). Drying can be done naturally in the sun or using specialized drying equipment.
Feeding Process
Pretreated sawdust is conveyed to the feed port of the biomass pellet machine. The feed rate is adjusted based on the pellet machine's production capacity and process requirements to ensure stable and uniform feed.
Pressing Process
  • Pressure Application: The pressing chamber consists of press rollers and ring die. The press rollers squeeze the sawdust into the ring die's holes, which determine the size and shape of the final pellets.
  • Frictional Heating: Intense friction raises the temperature (80-100°C), softening lignin which acts as a natural binder to form strong pellets.
Forming and Discharging
Pellets are cut to equal length by the cutting device and discharged through the pellet machine's outlet.
Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming 1
Service and Support
  • We can build all kinds of fully automatic feed production lines
  • Customize turnkey production lines according to your needs
  • Experienced technical experts provide first-class technology and equipment
  • Complete after-sales service with professional training to maximize project needs
Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming 2
Certificate of Honor
Integrated, segmented fully automatic feed pellet production line, turnkey project, poultry farming 3
